·New Automatic Stencil Inspection System SVII-K90 with Squeegee Detection Function
This is the first and leading full automatic stencil inspection machine in China,which can solve all the problem for making and cleaning the stencil, improve the cleaning process, establish stencil management standard, improve the production management system, automatic inspection instead of manual checking, reduce the labour cost, improve the products quality as well as solve the excess solder, insufficient solder short problem at the very
beginning.
·Process Improvement
1. Solve the problem in receiving and cleaning the stencils, improve the cleaning process
2. Establish stencil management standard, improve production management system
3. Automatic inspect instead of manual checking, improve products quality
4. Solve the excess solder, insufficient solder short problem at the very beginning.
5. The 01005 component or even more smaller component are widely used in the production now, high precision inspect is needed for future development.
·Designed for Precision
High-speed Linear Motor (magnetic suspension transmission) movement and control drive device,applied with DKM adjustable liner motor driving module to ensure the high precision of the liner movement, and avoid the low precision issue occurred due to the corrosion after used the traditional lead screw for a long time.
·Case Anaplysis
·Features

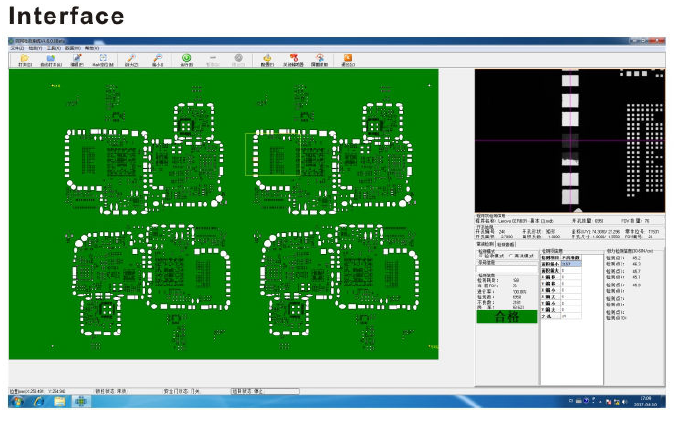

1. Input GERBER data and modularizing the data structure. The results an be viewed after immediate measuring within 3 min.
2. Input CAD file, the inspection data can match with SPI immediately, then can go back to check.

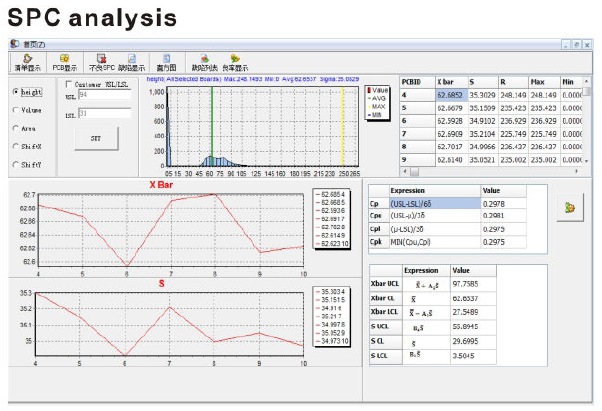

3. It combines the different SPC analysis automatically, so it resolved and standardized the design of the stencils, and to guide the application for our clients promptly and easily.
4. Inspect for apertures area, position, offset, size, foreign objects, burr, hole clogging, miss hole, tension and solder paste all printed data etc. of stencil
5. The open type of communication protocols can communicate with in-line real time system or machine in the market. All stencil ID number, data and status can be checked at any time.
6. The fastest speed in the world, it only take 2 min. to inspect a PCB board with 230mm*150mm, including to check the data and SPC analysis.
7. The world's fastest detection speed, standard PCB230 * 150 measurement speed of 2 minutes, including view data structure SPC analysis
·Technical Parameters（SVII-K90）
